Performance Impact of SQL Server 2016 Row-Level Security

By:   |   Updated: 2017-03-27   |   Comments (5)   |   Related: > Security


Problem

Row-Level Security, a new feature in SQL Server 2016, allows you to prevent unauthorized users from seeing certain rows in a table, without having to write your own filters. Think of a manager only being able to see their subordinates, or an account manager having access only to their own customers. All of this happens automatically, so it can be a very convenient way to implement security. But at what cost?

Solution

There is a performance penalty that can come into play when using Row-Level Security. I'm going to use a very simple example - an orders table, with three different users responsible for sales:

CREATE DATABASE RLS;
GO

USE RLS;
CREATE USER Sales1 WITHOUT LOGIN;
CREATE USER Sales2 WITHOUT LOGIN;
CREATE USER Sales3 WITHOUT LOGIN;
GO

CREATE TABLE dbo.Orders
(
  OrderID     int  NOT NULL,
  SalesPerson sysname,
  OrderDate   date NOT NULL
  CONSTRAINT df_OrderDate DEFAULT GETDATE(),
  CONSTRAINT pk_Orders PRIMARY KEY(OrderID),
  INDEX ix_Orders_sp (SalesPerson)
);
GO

GRANT SHOWPLAN TO Sales1, Sales2, Sales3;
GRANT SELECT ON dbo.Orders TO Sales1, Sales2, Sales3;

Now, to illustrate how this affects performance, we'll insert 2,000 orders for the user Sales1, 20 orders for the user Sales2, and 2 orders for the user Sales3:

INSERT dbo.Orders(OrderID, SalesPerson)
SELECT TOP (2000) rn =   ROW_NUMBER() OVER (ORDER BY name),
  N'Sales1' FROM sys.all_columns
UNION ALL
SELECT TOP (20)   2000 + ROW_NUMBER() OVER (ORDER BY name),
  N'Sales2' FROM sys.all_objects
UNION ALL
SELECT 2021, N'Sales3' UNION ALL SELECT 2022, N'Sales3';

How we used to do it

In the old days, we would have relied on things like USER_NAME() or even passing a variable from the application to use in a where clause to produce only the rows the current user should access. That might look like this (and I'll be adding OPTION (RECOMPILE) throughout to ensure there are no tricks like relying on a previously cached plan):

DECLARE @SalesPerson sysname = USER_NAME();
SELECT OrderID, SalesPerson, OrderDate
  FROM dbo.Orders
  WHERE SalesPerson = @SalesPerson
  OPTION (RECOMPILE);

Let's execute this as each of our three users, and see what plans SQL Server comes up with to satisfy the queries:

ALTER DATABASE SCOPED CONFIGURATION CLEAR PROCEDURE_CACHE;
DBCC DROPCLEANBUFFERS;

DECLARE @sql nvarchar(max) = N'
DECLARE @SalesPerson sysname = USER_NAME();
SELECT OrderID, SalesPerson, OrderDate
  FROM dbo.Orders
  WHERE SalesPerson = @SalesPerson
  OPTION (RECOMPILE);';

EXEC(@sql) AS USER = N'Sales1';
EXEC(@sql) AS USER = N'Sales2';
EXEC(@sql) AS USER = N'Sales3';

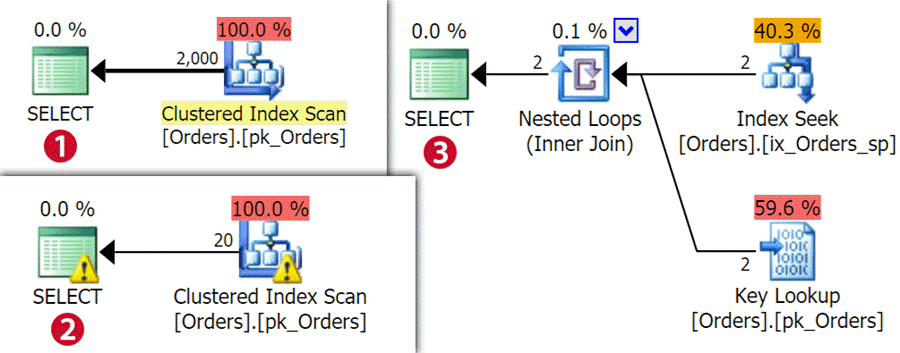

When you look at the execution plans, you can see that both the query for Sales1 (1) and Sales2 (2) have a clustered index scan, while Sales3 (3) - with only 2 rows - opted for an index seek plus a key lookup:

Execution plans for manual filter

Now, there is some information in the properties for those operators, but runtime performance is what most people care about. I ran the following batch 1,000 times for each salesperson, clearing the cache and buffers again each time. Note that I can't use OPTION (RECOMPILE) here, otherwise I wouldn't be able to collect query stats (and that wouldn't be in typical production workloads anyway):

ALTER DATABASE SCOPED CONFIGURATION CLEAR PROCEDURE_CACHE;
DBCC DROPCLEANBUFFERS;

DECLARE @sql nvarchar(max) = N'DECLARE @OrderID int;
SELECT @OrderID = OrderID
  FROM dbo.Orders
  WHERE SalesPerson = USER_NAME();';

EXEC(@sql) AS USER = N'Sales1'; -- run again for Sales2, Sales3
GO 1000

SELECT * INTO #MS1 -- run again for #MS2, #MS3
FROM sys.dm_exec_query_stats AS qs
CROSS APPLY sys.dm_exec_sql_text(qs.plan_handle) AS t
WHERE t.[text] LIKE '%Sales'+'Person%';

We'll come back and look at those runtime metrics later.

Now, with Row-Level Security

First, we need a function that can allow SQL Server to filter out rows a given salesperson should not have access to, and then a policy to associate the function with our orders table:

CREATE FUNCTION dbo.LimitOrders(@SalesPerson sysname)
RETURNS TABLE
WITH SCHEMABINDING
AS
  RETURN
  (
    SELECT [Go] = 1 FROM dbo.Orders
      WHERE @SalesPerson = USER_NAME()
      OR IS_SRVROLEMEMBER(N'sysadmin') = 1
  );
GO

CREATE SECURITY POLICY OrderPolicy
ADD FILTER PREDICATE dbo.LimitOrders(SalesPerson) ON dbo.Orders
WITH (STATE = ON);

Now, we can run our queries again, this time without the manual filters:

EXEC(N'SELECT * FROM dbo.Orders OPTION (RECOMPILE);') AS USER = N'Sales1';
EXEC(N'SELECT * FROM dbo.Orders OPTION (RECOMPILE);') AS USER = N'Sales2';
EXEC(N'SELECT * FROM dbo.Orders OPTION (RECOMPILE);') AS USER = N'Sales3';

This time, the results show the same plan for all three queries, with two clustered index scans:

Execution plans for basic policy filter

The expensive scan retrieves all the data, while the cheaper one finds all the rows where SalesPerson = USER_NAME(). I could play with hinting to see if there is any way to make SQL Server the index on SalesPerson (without simplifying the function to remove the sysadmin check), but for now I'll leave that as an exercise to the reader.

Again, I'm going to save off the results of a batch of 1,000 executions so we can look at performance metrics:

ALTER DATABASE SCOPED CONFIGURATION CLEAR PROCEDURE_CACHE;
DBCC DROPCLEANBUFFERS;

DECLARE @sql nvarchar(max) = N'DECLARE @OrderID int;
SELECT @OrderID = OrderID
  FROM dbo.Orders
  WHERE SalesPerson = USER_NAME();';

EXEC(@sql) AS USER = N'Sales1'; -- run again for Sales2, Sales3
GO 1000

SELECT * INTO #PS1 -- run again for #PS2, #PS3
FROM sys.dm_exec_query_stats AS qs
CROSS APPLY sys.dm_exec_sql_text(qs.plan_handle) AS t
WHERE t.[text] LIKE '%Sales'+'Person%';

With Context

Another way you can write the function is to make use of SESSION_CONTEXT() - we can simply change the filter to check the value of a specific session context value we've set. The function would change like this (which can be done online):

ALTER FUNCTION dbo.LimitOrders(@SalesPerson sysname)
RETURNS TABLE
WITH SCHEMABINDING
AS
  RETURN
  (
    SELECT [Go] = 1 FROM dbo.Orders
      WHERE @SalesPerson = SESSION_CONTEXT(N'UserName')
      OR IS_SRVROLEMEMBER(N'sysadmin') = 1
  );
GO

Then we can change our queries slightly to see what those plans look like:

EXEC(N'DECLARE @u sysname = USER_NAME();
  EXEC sys.sp_set_session_context @key = N''UserName'', @value = @u;
  SELECT @OrderID = OrderID FROM dbo.Orders;')
AS USER = N'Sales1'; -- repeat for Sales2, Sales3

And here we can see that shifting from the direct check against USER_NAME() to using SESSION_CONTEXT() actually provides the optimizer a little leeway again:

Execution plans for basic policy filter

One more time, we'll clear the procedure cache and drop all the clean buffers, run the query 1,000 times, and then save off the query stats metrics for further analysis:

EXEC(N'DECLARE @u sysname = USER_NAME();
  EXEC sys.sp_set_session_context @key = N''UserName'', @value = @u;
  DECLARE @i int = 1, @OrderID int;
  WHILE @i <= 1000
    BEGIN
      SELECT @OrderID = OrderID FROM dbo.Orders;
   SET @i += 1;
 END') AS USER = N'Sales1'; -- repeat for Sales2, Sales3

SELECT * INTO #CX1 -- run again for #CX2, #CX3
FROM sys.dm_exec_query_stats AS qs
CROSS APPLY sys.dm_exec_sql_text(qs.plan_handle) AS t
WHERE t.[text] LIKE '%Sales'+'Person%';

Performance Comparison

With performance data already collected, it was easy to see how the different options performed at scale:

SELECT Iteration,
  rows_per = total_rows/execution_count,
  total_elapsed_time,
  avg_time = CONVERT(decimal(10,2),total_elapsed_time*1.0/execution_count),
  total_logical_reads
FROM
(
  SELECT Iteration = 'Manual-Sales1' ,* FROM #MS1
  UNION ALL SELECT   'Manual-Sales2' ,* FROM #MS2
  UNION ALL SELECT   'Manual-Sales3' ,* FROM #MS3
  UNION ALL SELECT   'Policy-Sales1' ,* FROM #PS1
  UNION ALL SELECT   'Policy-Sales2' ,* FROM #PS2
  UNION ALL SELECT   'Policy-Sales3' ,* FROM #PS3
  UNION ALL SELECT   'Context-Sales1',* FROM #CS1
  UNION ALL SELECT   'Context-Sales2',* FROM #CS2
  UNION ALL SELECT   'Context-Sales3',* FROM #CS3
) AS x ORDER BY RIGHT(iteration,1), avg_time;

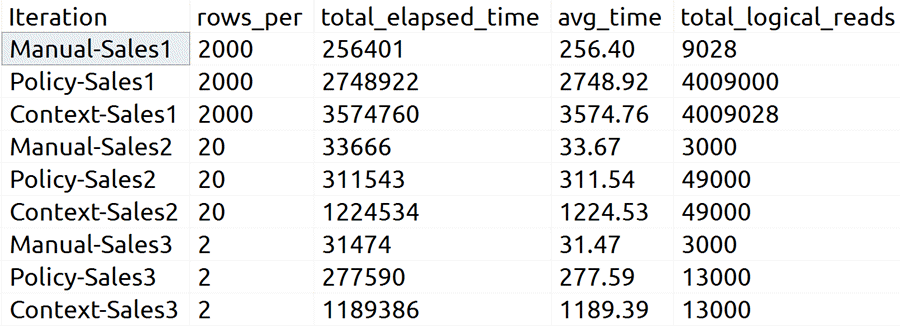

And here were the results in my tests:

grid results

The optimizer freedom afforded by the use of SESSION_CONTEXT(), as it turns out, made average performance even worse than the standard policy, which used the same plan throughout all tests. Here is average time on a graph:

chart

Also, when execution plans look alike, you should investigate them more deeply than just the graphical plans. In this case, it is obvious that the runtime performance has been drastically impacted by the introduction of the predicate function, even though the graphical execution plan gave no indication. If you dig deeper, though, you can see that in some cases there are bad estimated number of rows to be read - it's almost as if the security predicate is applied way too late to avoid parameter sniffing or just escalating to the whole table:

tool tips

Similar phenomena exist in other plans above, but it is clear that the RLS functions - at least when relying on data in the table - add a performance impact for some kind of read operation that can't be folded into the original table access (be it a seek or a scan).

Summary

Row-Level Security introduces a very convenient way to implement proper access controls on your data, with minimal impact to existing code. However, there are performance implications that you should consider and test with a realistic data set and workload before arriving at a solution. One thing I want to investigate is how to use SESSION_CONTEXT() to avoid some of those OR conditionals that are eventually going to make their way into your RLS policy functions, and perhaps also design suggestions to avoid two trips to the base table. For future tips, maybe.

Next Steps


sql server categories

sql server webinars

subscribe to mssqltips

sql server tutorials

sql server white papers

next tip



About the author
MSSQLTips author Aaron Bertrand Aaron Bertrand (@AaronBertrand) is a passionate technologist with industry experience dating back to Classic ASP and SQL Server 6.5. He is editor-in-chief of the performance-related blog, SQLPerformance.com, and also blogs at sqlblog.org.

This author pledges the content of this article is based on professional experience and not AI generated.

View all my tips


Article Last Updated: 2017-03-27

Comments For This Article




Tuesday, January 11, 2022 - 10:35:10 AM - Mazen Khoder Back To Top (89646)
No performance issue, only you need:
1- replace :
SELECT [Go] = 1 FROM dbo.Orders
WHERE @SalesPerson = USER_NAME()
OR IS_SRVROLEMEMBER(N'sysadmin') = 1
By
SELECT [Go] = 1
WHERE @SalesPerson = USER_NAME()
union all
SELECT 1
where IS_SRVROLEMEMBER(N'sysadmin') = 1
2- Add the index:
CREATE NONCLUSTERED INDEX [ix_Orders_sp] ON [dbo].[Orders]
(
[SalesPerson] ASC
)
INCLUDE ( [OrderID]) WITH (PAD_INDEX = OFF, STATISTICS_NORECOMPUTE = OFF, SORT_IN_TEMPDB = OFF, DROP_EXISTING = OFF, ONLINE = OFF, ALLOW_ROW_LOCKS = ON, ALLOW_PAGE_LOCKS = ON) ON [PRIMARY]
GO
Thanks.

Friday, April 20, 2018 - 1:15:43 AM - Gabe Back To Top (75738)

That still doesn't really make it a valid comparison. RLS essentially cross applys the ITVF and returns rows where the cross apply matches anything and omits rows where it does not. This means that the predicate function should be designed to ideally return a single, scalar value, and as efficiently as possible. You won't get wrong results returning a whole result set, but it will do all the work as though you wanted all those rows (even if it's just treating it like an EXISTS) clause. That's the ovbservation you had where you said it's "applying the rule too late".

So selecting everything from dbo.Orders (essentially without a predicate) is not a realistic use case because it's not designed to behave like a paramterized view; just an exists check without the benefit of short circuiting if ANY rows are found. Also, and this may have just been a typo, but your "go-batched" Policy rows, still have user_name() specifically in the dsql. That's going to skew results.

I re-ran all this with 4 distinct scenarios

  1. Manual: no function, just inlining user_name()
  2. Policy: Policy checking current row against user_name()
    1. select foo = 1 where @SalesPerson = user_name()
  3. RuleLookup: Policy checking current row against a separate table and applying a rule (see below)
    1. This can't be compared 1-to-1 with the other methods, but I thought it was informative
  4. Context: Policy checking current row against convert(sysname, status_context(N'UserName'))
    1. select bar = 'Hello' where @SalesPerson = status_context(N'UserName')

for #3, I created a test table called dbo.SecurityRules like this





  • create table dbo.SecurityRules (SalesPerson sysname primary key, RowModulus as 2)

I then had the function accept SalesPerson and OrderId and evaluate the following

  • select SalesPerson from dbo.SecurityRules where SalesPerson = and @OrderId % RowModulus = 0

for #4, you'll I had to convert status_context because by default its a SQL_VARIANT which SQL handles horribly. So that's something to be careful ov. Otherwise though, it behaves almost identiclaly (if not better) than the user_name() equivalent check.

ALL THAT SAID, you are correct in that there does appear to be overhead to this approach over just doing it manually. But they are considerably closer than this post would suggest. And I should also said that the sheer fact that I had to spend hours trying to figure out what was off, and that I managed to reproduce the horrible performance on multiple occasions by accident show underscore the importance you suggest when using this approach.

FWIW, here are how the stats came out for the tests I outlined above

Iteration RowsPer AvgTime LR

------------------ ------- ---------- --------

RuleLookup-Sales1 1000 228.78 11000

Policy-Sales1 2000 201.13 9000

Context-Sales1 2000 198.45 9000

Manual-Sales1 2000 196.31 9028

RuleLookup-Sales2 10 21.45 5000

Manual-Sales2 21 14.30 3000

Policy-Sales2 21 14.25 3000

Context-Sales2 21 13.05 3000

RuleLookup-Sales3 1 18.07 5000

Policy-Sales3 1 11.69 3000

Manual-Sales3 1 11.38 3000

Context-Sales3 1 10.73 3000



Friday, March 16, 2018 - 10:48:02 AM - Aaron Bertrand Back To Top (75445)

Yes folks, I understand the access to dbo.Orders is not necessary there. The point was simply that people will often need to have *some* table access in the function, e.g. to check your own ACL. So while it may not be that table, it is likely to be *some* table.

Friday, March 16, 2018 - 10:32:09 AM - James Back To Top (75443)

 Hi Aaron,



I agree with Lucas.  You don't need to join to the order table in the RLS predicate function. Thats what is causing your performance issue. The sales person from the table is passed in to the function so you don't need to look it up again in the function.



James.





Friday, September 29, 2017 - 9:37:53 AM - Lucas Back To Top (66721)
Hello,

Maybe I am missing something but in the predicate function why are you going for selecting from Orders
 SELECT [Go] = 1 FROM dbo.Orders
      WHERE @SalesPerson = USER_NAME()
      OR IS_SRVROLEMEMBER(N'sysadmin') = 1

vs.

 SELECT [Go] = 1
      WHERE @SalesPerson = USER_NAME()
      OR IS_SRVROLEMEMBER(N'sysadmin') = 1
